Automatic Strapping Machine Models



MPS-001SH
Automatic Strapping Machine – MPS 010FASTA1
Model
Automatic Strapping Machine – MPS 010FASTA1
Arch Size
800W X 600H mm (Standard)
Power Supply
3, 415V, 50 Hz, 850 watts
Strap Cycle Speed ​
2.5Sec./Cycle
Tension Strength
Max. 70 kgs. (Adjustable)
Strap Width
9/12 mm –to be specified at the time of placing the order
Sealing Method
Heat Sealing
Table Height
820 mm
Control
High Precision Reliable – Micro Processor Control & PCB
MPS-001S

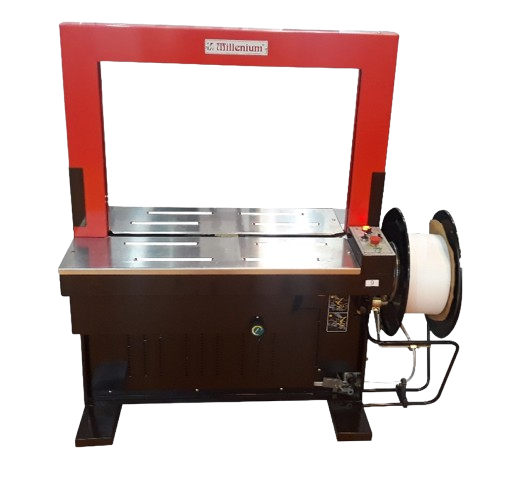

Automatic Strapping Machine – MPS 010FASTA1R
Model
Automatic Strapping Machine – MPS 010FASTA1R
Arch Size
800W X 600H mm (Standard)
Power Supply
3, 415V, 50 Hz, 850 watts
Strap Cycle Speed ​
2.5Sec./Cycle
Tension Strength
Max. 70 kgs. (Adjustable)
Strap Width
9/12 mm –to be specified at the time of placing the order
Sealing Method
Heat Sealing
Table Height
820 mm
Control
High Precision Reliable – Micro Processor Control & PCB
MPS-001SE

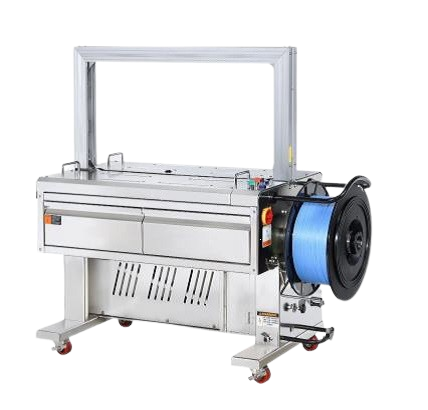

Automatic Strapping Machine - Stainless Steel MPS 010FASTA1SS
Model
Automatic Strapping Machine Double Head
Arch Size
800W X 600H mm (Standard)
Strap Cycle Speed ​
28 Cycles / 60hz / per Min. 26 Cycles / 50hz / per Min.
Tension Strength
70Kgs / Max.
Strap Width
9~15.5mm ​
Sealing Method
Heat Sealing
Table Height
810mm
Power Supply
110/220V 50/60HZ 1PH.
Pallet Strapping
Automatic Strapping Machine Online - Power Roller Table
Model
Fully Automatic Strapping Machine Online-Power Roller Table
Arch Size
800W X 600H mm (Standard)
Power Supply
110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph
Strap Cycle Speed ​
2.5Sec./Cycle
Tension Strength
Max. 70 kgs. (Adjustable)
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Table Height
810 mm
Machine Weight
330 Kgs.
Gross Weight
430 KG
Power Belt Speed
15M/50Hz Per Min.
Package Size
200-520W, 30-560H mm
Stainless Steel

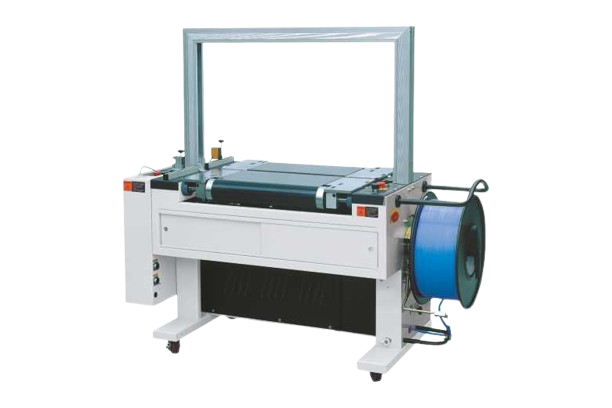

Automatic Strapping Machine Online - Power Belt Table
Model
Fully Automatic Strapping Machine Online- Power Belt Table
Arch Size
800W X 600H mm (Standard)
Power Supply
110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph
Strap Cycle Speed ​
2.5Sec./Cycle
Tension Strength
Max. 70 kgs. (Adjustable)
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Dimensions
1550W x 800D x 1470H mm
Table Height
810 mm
Machine Weight
330 Kgs.
Gross Weight
430 KG
Power Belt Speed
15M/50Hz Per Min.
Package Size
200-520W, 30-560H mm
Another Product

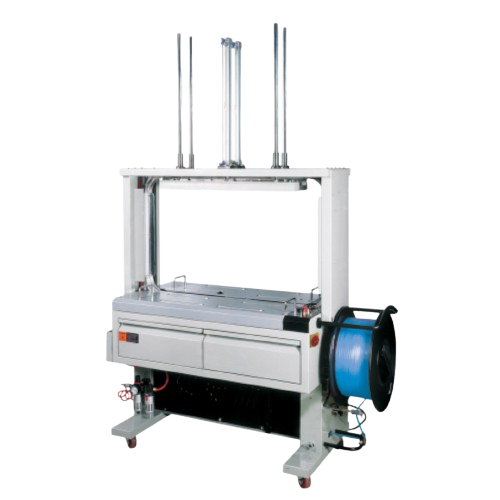

Automatic Strapping Machine (Penumatic Pressing)
Model
Automatic Strapping Machine (Penumatic Pressing)
Arch Size
800W X 600H mm (Standard)
Power Supply
110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph
Strap Cycle Speed ​
2.5Sec./Cycle
Tension Strength
Max. 70 kgs. (Adjustable)
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Dimensions
1550W x 800D x 1470H mm
Table Height
810 mm
Power Belt Speed
15M/50Hz Per Min.
Stroke
550mm
Pressure
5kg/cm 2
Cylinder
Inner Diameter: Ο†40
Pallet Strapping

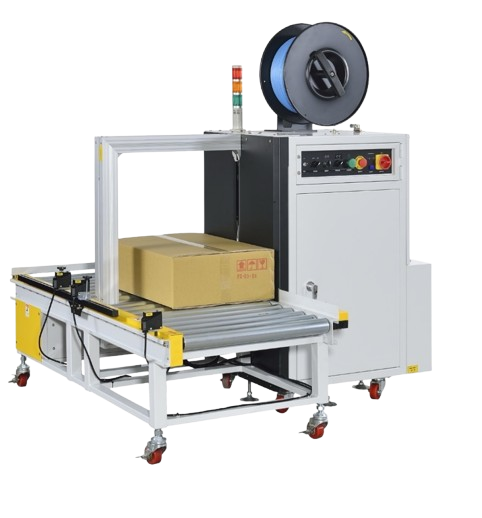

Automatic Strapping Machine – Side Sealing Type
Model
Automatic Strapping Machine – Side Sealing Type
Arch Size
600W x 850H mm (Standard)
Power Supply
110/220V 50/60HZ 1PH 220/380V 50/60HZ 3PH
Strap Cycle Speed ​
28 Cycles / per Min.
Tension Strength
70Kgs / Max.
Strap Width
9~15.5mm ​
Sealing Method
Heat Sealing
Dimensions
1400L x 640W x 1740H mm3
Stainless Steel

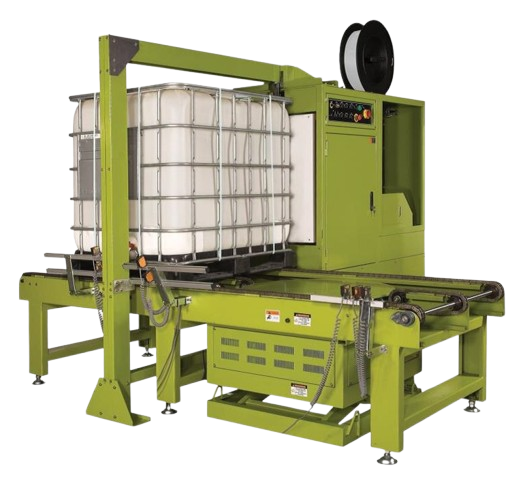

Automatic Strapping Machine – Pallets
Model
Automatic Strapping Machine – Side Sealing Type
Arch Size
1300W x 2500H mm (customization)
Power Supply
110/220V 50/60HZ 1PH 220/380V 50/60HZ 3PH
Strap Cycle Speed ​
3 sec. / cycles (60HZ) (Depends on the package size)
Tension Strength
70Kgs / Max.
Strap Width
12~19mm
Sealing Method
Heat Sealing
Dimensions
3446W x 800D x 2935H mm
Another Product

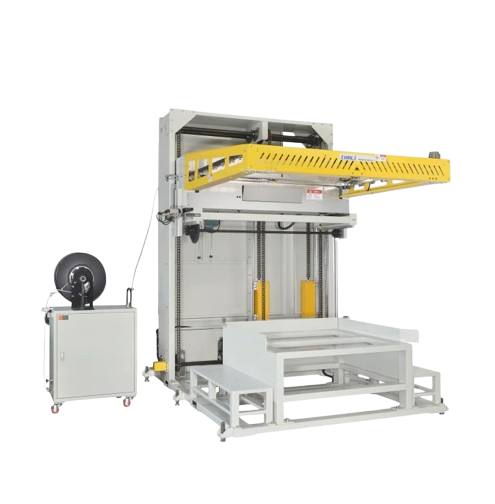

Automatic Horizontal Strapping Machine – Pallets
Model
Fully Automatic Horizontal Strapping Machine – Pallets
Arch Size
W 1400 X D 1300 X H 1500 mm
Power Supply
110/220V 50/60HZ 1PH 220/380V 50/60HZ 3PH
Tension Strength
70Kgs / Max.
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Table Height
H650mm (customization)
Pallet Strapping

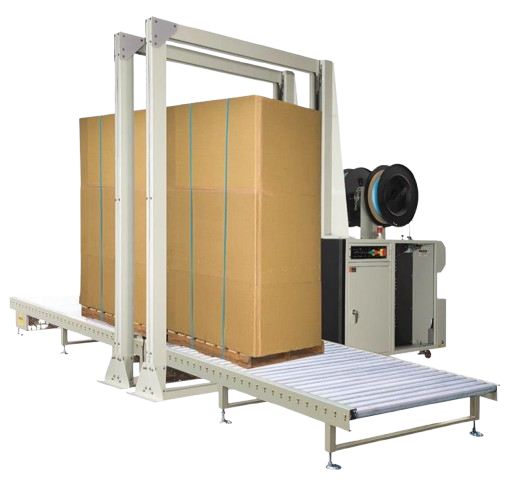

Automatic Strapping Machine – Double Head
Model
Automatic Strapping Machine – Double Head
Arch Size
1000W x 2800H mm (Customize)
Power Supply
220/380V 50/60HZ 3PH
Tension Strength
70Kgs / Max.
Strap Width
12, 15, or 19 mm
Sealing Method
Heat Sealing
