Carton Taping Machine Models



MPS-001SH
MPS-CS040MA (6050)
Model
MPS-CS040MA (6050)
Function
Top & Bottom Drive
Power Supply
1 Phase 220V 50 Hz 200W
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 150mm x H 150mm x L No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
635mm ~ 780mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1755mm x W 740 x H (1445~1605)
Conveyor Carrying Capacity
Upto 18 Kgs.
MPS-001S

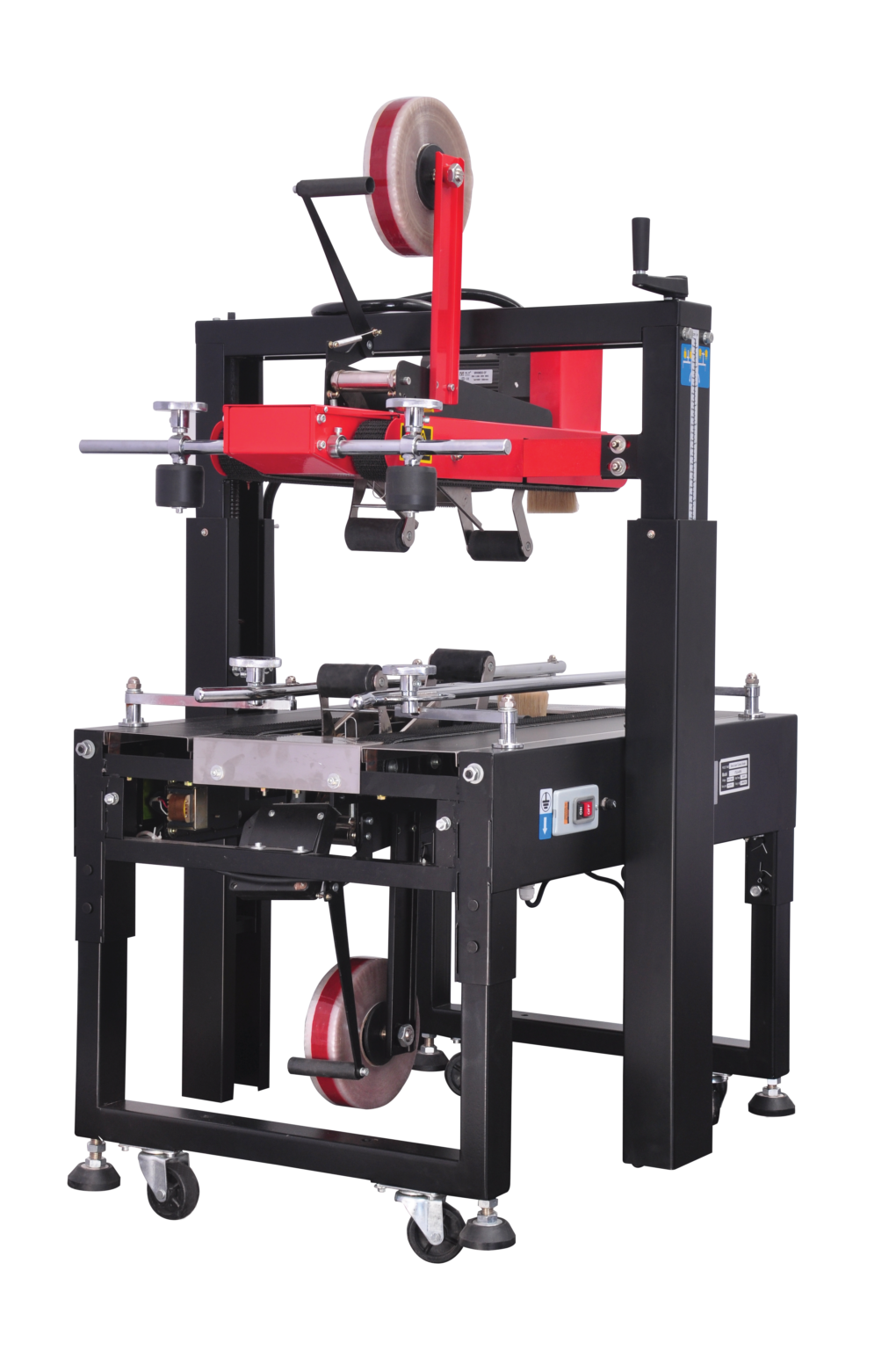

MPS-CS040MA (5050)
Model
MPS-CS040MA (5050)
Function
Side Drive
Power Supply
1 Phase 220V 50 Hz 200W
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 110mm x H 140mm x L No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
635mm ~ 780mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1755mm x W 740 x H (1445~1605)
Conveyor Carrying Capacity
Upto 18 Kgs.
MPS-001SE

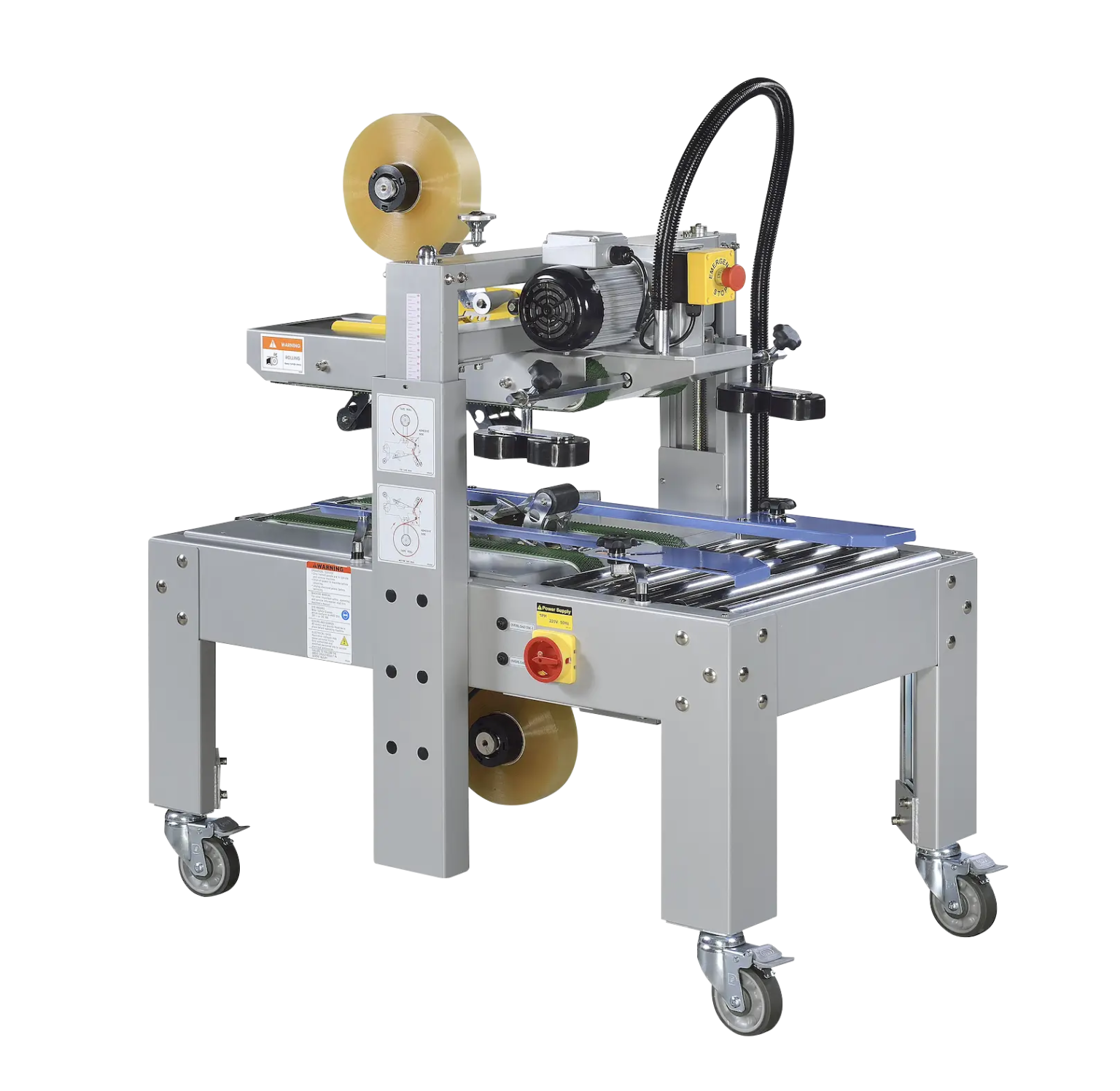

MPS-CS040MA-HD
Model
MPS-CS040MA-HD
Function
Top & Bottom Drive
Power Supply
1 Phase 220V 50 Hz 200W 3 Phase 380V/415V/440V 50/60 Hz
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 150mm x H 130mm x L 150mm ~ No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
570mm ~ 770mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1755mm x W 740 x H (1445~1605)
Conveyor Carrying Capacity
Upto 30 Kgs.
Power Consumption
2.25 KW
Pallet Strapping

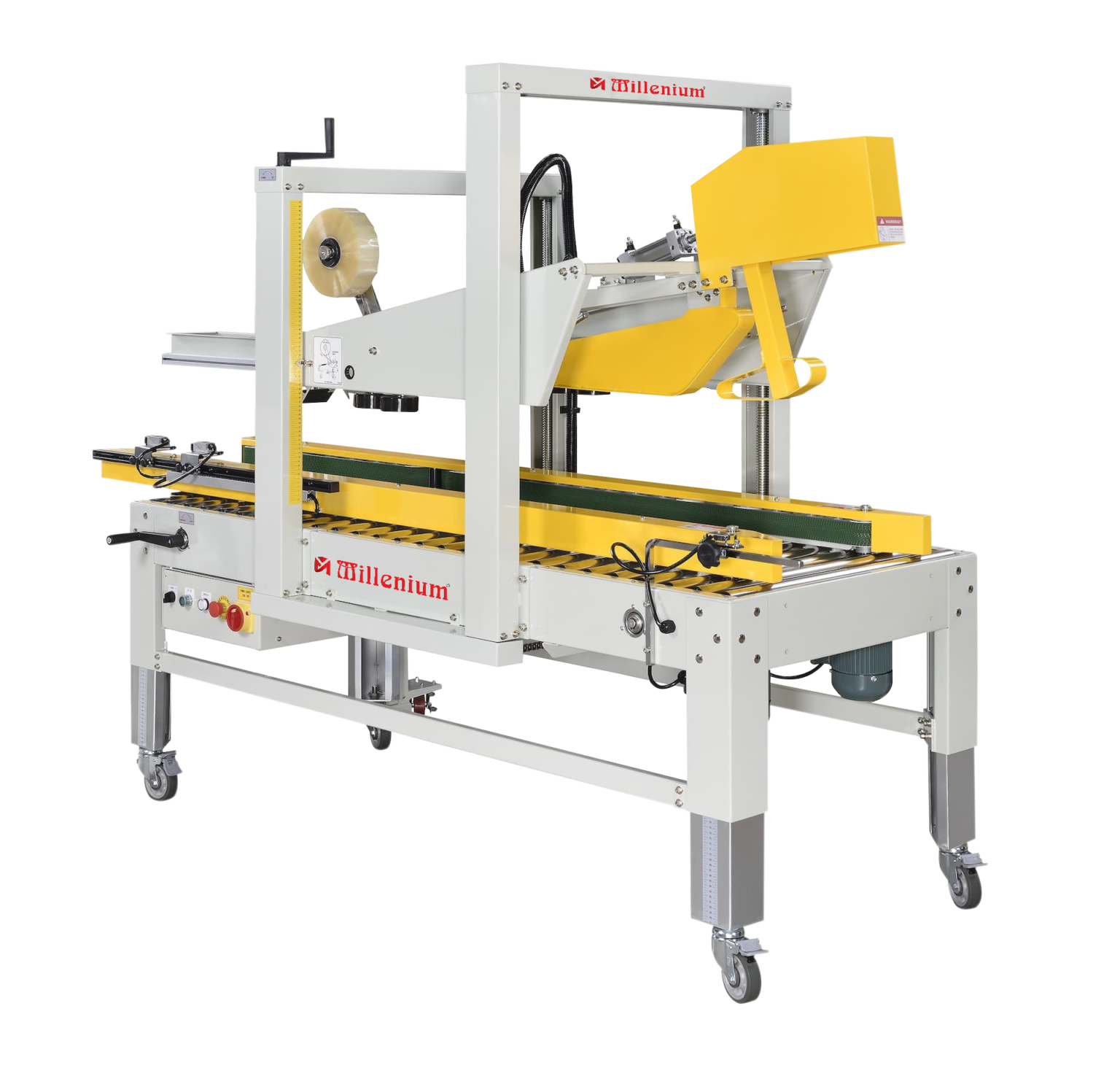

MPS-CS040SA
Model
MPS-CS040SA
Function
Side Drive
Power Supply
1 Phase 220V 50 Hz 200W 3 Phase 380V/415V/440V 50/60 Hz
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 150mm x H 130mm x L 150mm ~ No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
570mm ~ 770mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1250mm x W 910 mm x H 1315mm
Conveyor Carrying Capacity
Upto 30 Kgs.
Power Consumption
2.25 KW
Compressed Air
6 KG/cm2
Stainless Steel

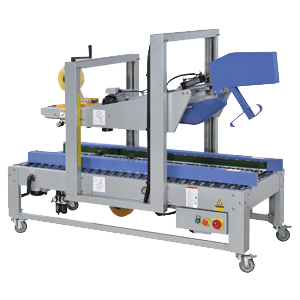

MPS-CS040MA-FC
Model
MPS-CS040MA-FC
Function
Side Drive
Power Supply
1 Phase 220V 50 Hz 200W
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 150mm x H 130mm x L 150mm ~ No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
570mm ~ 770mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1900mm x W 960 mm x H 1600mm
Conveyor Carrying Capacity
Upto 30 Kgs.
Power Consumption
2.25 KW
Compressed Air
6 KG/cm2
Another Product

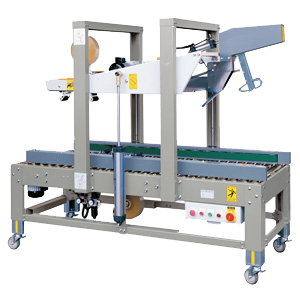

MPS-CS040SA-FC
Model
MPS-CS040SA-FC
Function
Side Drive
Power Supply
1 Phase 220V 50 Hz 200W
Conveying Belt Speed
20 mtrs/Min.
Min. Carton Size
W 150mm x H 130mm x L 150mm ~ No Bar
Max. Carton Size
W 500mm x H 500mm x L No Bar
Width of Adhesive Tape
48/60/72 mm
Working Height
570mm ~ 770mm (Adjustable)
Motor Power
90W x 2
Tape Used
BOPP/Waterfree/PVC
Dimensions (mm)
L 1985mm x W 950 mm x H 1625mm
Conveyor Carrying Capacity
Upto 30 Kgs.
Power Consumption
2.25 KW
Compressed Air
6 KG/cm2
Pallet Strapping

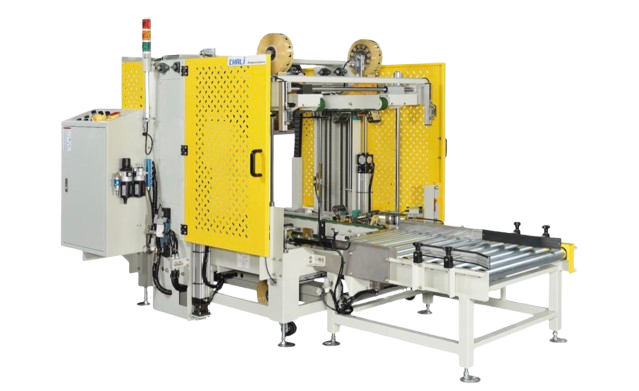

Carton Edge Sealer
Model
Carton Edge Sealer
Function
Side Drive
Power Supply
1 Phase 110V/220V/240V 50/60HZ
Packing size
Max.: L600 x W500 x H500 MM Min.: L280 x W200 x H180 MM
Tape Width
50MM (2”) or 76mm (3”)
Working Table Height
570~770MM (Adjustable)
Transmit Speed
20M/Min.
Air Compressor
6 Kg/cm2 (Adjustable)
