Semiatomatic Strapping Machine Models

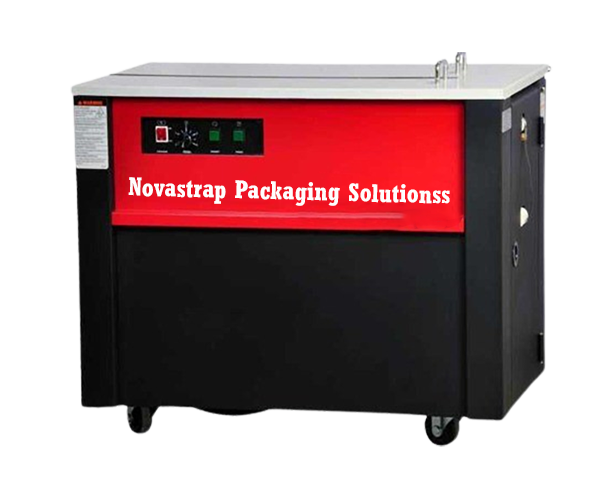

MPS-001SH
MPS-001SH
Model
MPS-001SH
Strap Cycle Speed
1.5 sec./ strap (30 ā€“ 40 Straps/min.)
Tension Strength
15~60Kg
Table Height
750mm (001SH) & 380 mm (002LTH)
Strap Width
5~15mm (Adjustable)
Sealing Method
Heat Sealing
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ƙ 220V 200W
Power Supply
1 Ƙ 220V 50 Hz 350 W
Dimensions (mm)
900(W) x 580(D) x 750(H)
Weight
110Kg
MPS-001S
MPS-001S
Model
MPS-001S
Strap Cycle Speed
1.5 sec./ strap (30 ā€“ 40 Straps/min.)
Tension Strength
5~50Kg
Table Height
740mm (001S) & 380 mm (002LT)
Strap Width
6~15mm (Adjustable)
Sealing Method
Heat Sealing
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ƙ 220V 200W
Power Supply
1 Ƙ 220V 50 Hz 350 W
Dimensions (mm)
895(W) x 565(D) x 740(H)
Weight
85Kg

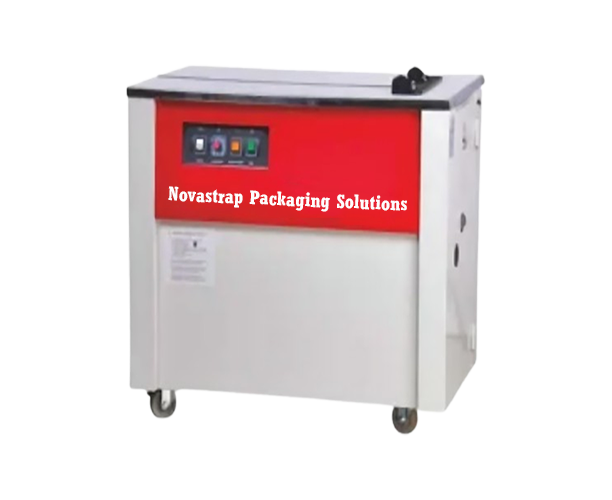

MPS-001SE
MPS-001SE
Model
MPS-001Sā€‹
Strap Cycle Speed
1.5 sec./ strap (30 ā€“ 40 Straps/min.)
Tension Strength
5~50Kg
Table Height
740mm (001S) & 380 mm (002LT)
Strap Width
6~15mm (Adjustable)
Sealing Method
Heat Sealing
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ƙ 220V 200W
Power Supply
1 Ƙ 220V 50 Hz 350 W
Dimensions (mm)
895(W) x 565(D) x 740(H)
Weight
85Kg
Pallet Strapping
Semi Automatic Pallet Strapping Machine
Model
MPS-001Sā€‹
Strap Cycle Speed
1.5 sec./ strap (30 ā€“ 40 Straps/min.)
Tension Strength
5~50Kg
Table Height
740mm (001S) & 380 mm (002LT)
Strap Width
6~15mm (Adjustable)
Sealing Method
Heat Sealing
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ƙ 220V 200W
Power Supply
1 Ƙ 220V 50 Hz 350 W
Dimensions (mm)
895(W) x 565(D) x 740(H)
Weight
85Kg
Stainless Steel

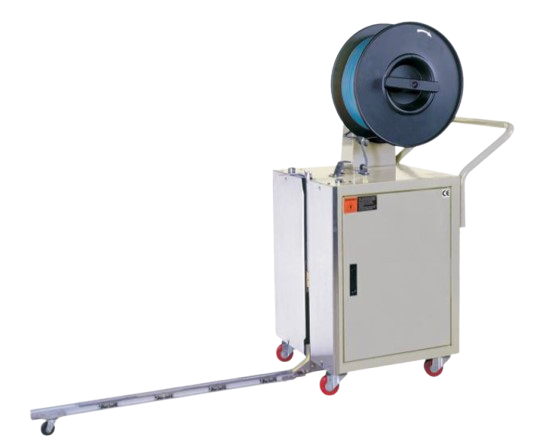

Semi Automatic Pallet Strapping Machine
Model
Semi Automatic Pallet Strapping Machine
Strap Guide
L1000 mm
Tension Strength
70Kgs / Max.
Table Height
740mm
Strap Width
12~15mm
Sealing Method
Heat Sealing
Driving Motor
1 Ƙ 220V 200W - Aluminium
Power Supply
110/220V 0/60HZ 1PH. 220/380V 50/60HZ 3PH
Dimensions (mm)
870L x 540W x 1380H mm
Weight
216 Kgs
Minimum Strapping Size
895(W) x 565(D) x 740(H)
Maximum Strapping Size
85Kg
Another Product

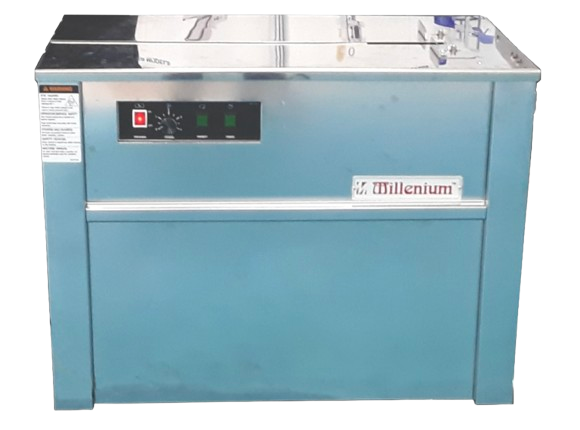

Semi Automatic Strapping Machine (SS)
Model
Semi Automatic Strapping Machine (SS)
Strap Cycle Speed
1.5 sec./ strap (30 ā€“ 40 Straps/min.)
Tension Strength
15~60Kg
Table Height
750mm (001SH) & 380 mm (002LTH)
Strap Width
5~15mm (Adjustable)
Sealing Method
Heat Sealing
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ƙ 220V 200W
Power Supply
1 Ƙ 220V 50 Hz 350 W
Dimensions (mm)
900(W) x 580(D) x 750(H)
Weight
110 Kgs
