Band Sealing Machine Models

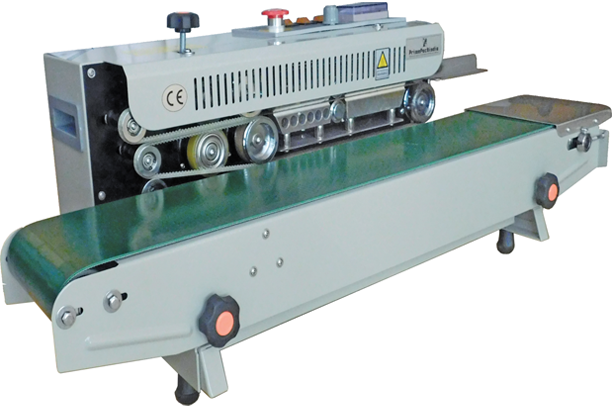

Band Sealer FGB-7701
Band Sealer FGB-7701
Models
FRB 7701 (Horizontal Type)
Voltage (V/Hz)
AC 220/50 110/60
Motor Power
50
Sealing Power (W)
300 x 2
Sealing Speed(m/min)
0-12(0-16)
SEaling Width(mm)
10
Temperature Control Range
0-300c (Stepless Adjustable)
Distance from selling center to conveyor table (mm)
20-40 150-270
Film Thickness (monolayer) mm
<= 0.08
Max Single Package Loading of conveyor (KG)
2.5
Max Overall Loading of conveyor
<= 3kg
External Dimensions (LxBxH) mm
840 x 380 x 320
Net Weight
23 KG

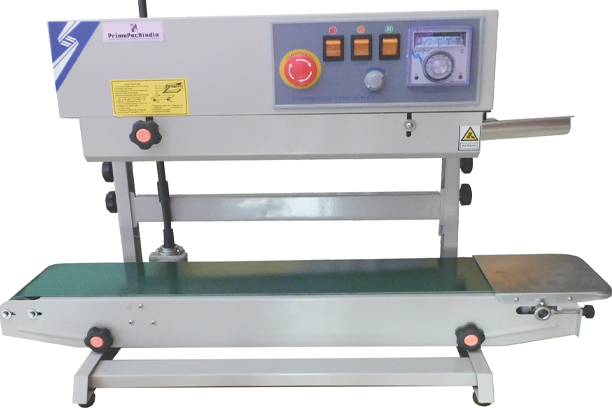

BandSealerFRB77011
Band Sealer FRB 77011
Models
FRB 77011 (Vertical Type)
Voltage (V/Hz)
AC 220/50 110/60
Motor Power
50
Sealing Power (W)
300 x 2
Sealing Speed(m/min)
0-12(0-16)
SEaling Width(mm)
10
Temperature Control Range
0-300c (Stepless Adjustable)
Distance from selling center to conveyor table (mm)
20-40 150-270
Film Thickness (monolayer) mm
<= 0.08
Max Single Package Loading of conveyor (KG)
2.5
Max Overall Loading of conveyor
5 kg
External Dimensions (LxBxH) mm
840 x 380 x 320
Net Weight
28 KG

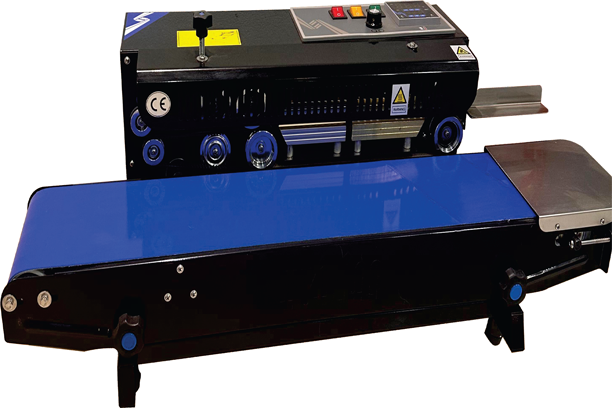

Band Sealer FRD 750E
Band Sealer FRD 750E
Models
FRD-750E
Voltage (V/Hz)
AC 220/50Hz 110/60
Sealing Power (W)
300 x 2
Sealing Speed(m/min)
0-24 m / min
Sealing Width(mm)
10mm
Conveyor Size
844 x 154 (LxH)mm
External Dimensions (LxBxH) mm
844 x 375 x 320
Motor Power
80W
Temperature Range
0-300c
Max Overall Conveyor Load
5 kg
Distance from selling center to conveyor table (mm)
10-40mm
Distance from Base Plate to Interior Conveyor(mm)
60-120mm
New Weight
23KG
Band Sealer 5 KG
Band Sealer 5 KG
Models
Vertical Star
Power Supply
Single Phase 220V/50Hz
Power Consumption
50W
Sealing Speed(m/min)
0-12 m / min
Sealing Width(mm)
12mm
Temperature
0 - 300c
Dimensions (LxBxH) mm
17 x 34 x 28 inch
Overall Weight
45KG
Overall Conveyor Load
<=5KG

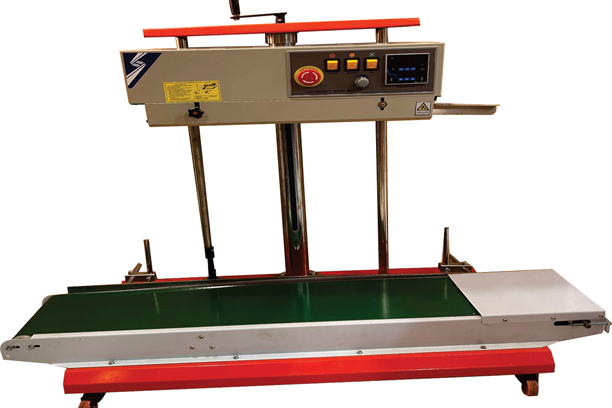

Band Sealer 10 KG
Band Sealer 10 KG
Models
Vertical Star
Power Supply
Single Phase 220V/50Hz
Power Consumption
50W
Sealing Speed(m/min)
0-12 m / min
Sealing Width(mm)
12mm
Temperature
0 - 300c
Dimensions (LxBxH) mm
17 x 34 x 28 inch
Overall Weight
45KG
Overall Conveyor Load
<=10KG
